❖ To demonstrate the operation of tuned RF Amplifier.
❖ To calculate the resonant frequency (at which there is maximum amplitude at the output). Horizontal oscillations (to deflection yoke) results to a given input signal by parallel combination of R & C (or) L & C at the collector.
❖ The resonant frequency is calculated by theoretical formula and verified by this experiment.
❖ To plot the curve voltage gain versus frequency.

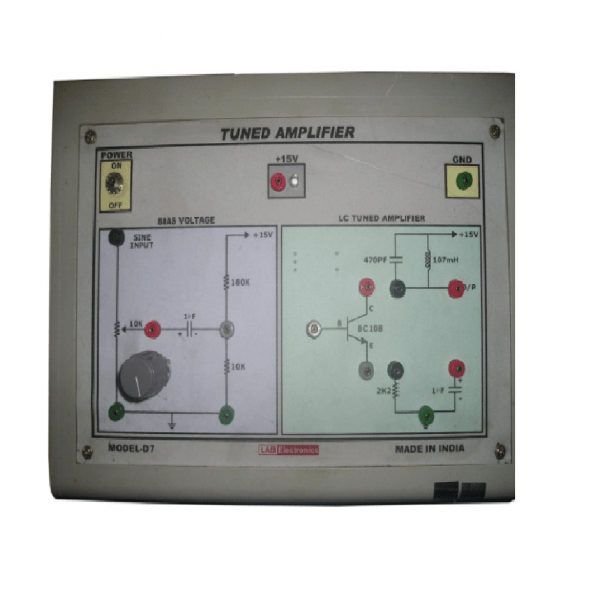

FEATURES OF THE TRAINER:
Built in regulated power supply : +15v and -15v/300 mA.
Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Weight : 500 Gm.
