C -14 SINGLE PHASE HALF & FULLY CONTROLLED BRIDGE RECTIFIER USING SCR
Category Special!
🚚 Delivery within 10 days
To construct single phase half & fully controlled bridge rectifier. Two SCRs are used in two arms of the bridge. During positive cycle the firing angle of SCR1 can be controlled and observed. During negative half cycle the firing angle of SCR2 can be controlled and observed in CRO. Similarly both positive and negative half cycles of applied AC signal can be rectified.
Description
FEATURES OF THE TRAINER:
Built in regulated power supply (0-18v AC)/300 mA.

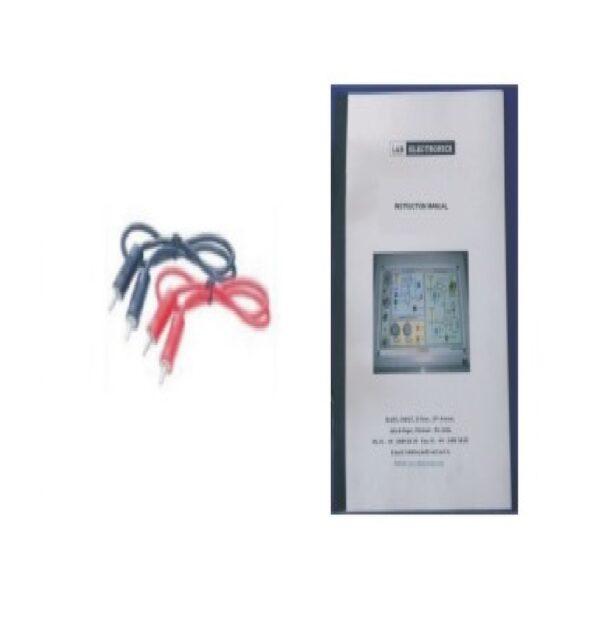

Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Weight : 500 Gm.

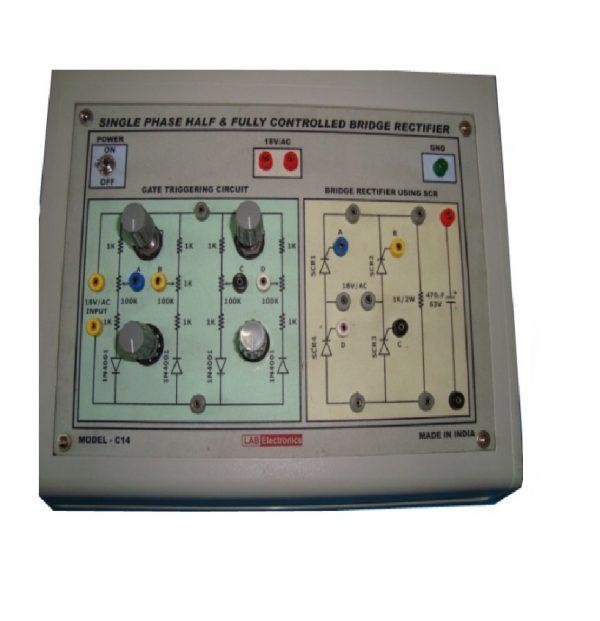

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
