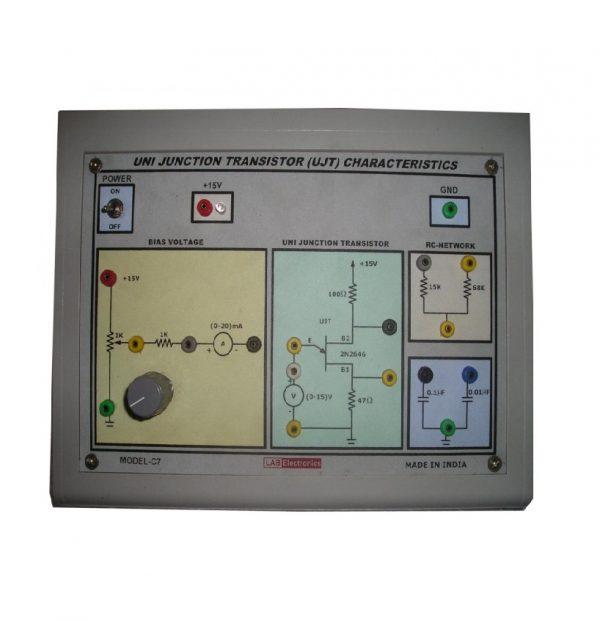

C-07 UNI-JUNCTION TRANSISTOR (UJT) CHARACTERISTICS AND TESTING METHODS
Category Special!
🚚 Delivery within 10 days
1. To determine the peak voltage (VP) in an UJT circuit.
2. To determine the valley voltage (VV) in an UJT circuit.
3. To calculate the intrinsic standoff ratio () for an UJT.
4. To demonstrate the changes in peak voltage, valley voltage, and intrinsic stand off ratio when the applied voltage to an UJT circuit is changed.
5. To demonstrate the outputs of an UJT relaxation oscillator.
Description
FEATURES OF THE TRAINER:
Built in regulated power supply :+15v /300 mA.
Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Weight : 500 Gm.
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
