C-01 SEMICONDUCTOR DIODE CHARACTERISTICS
Category Special!
🚚 Delivery within 10 days
1. To investigate the characteristics of typical germanium and silicon semiconductor diodes, plotting voltage – current curves and find out the knee of the curve in each case.
2. To find that there is no-linearity below the knee and there is linearity above the knee.
3. To find that the forward bias voltage across the germanium diode is around 0.3 V and that of the silicon diode is about 0.6 V to 0.7 V
Description
FEATURES OF THE TRAINER:
Built in regulated power supply :+9v and -9v/300 mA.
Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Weight : 500 GM.

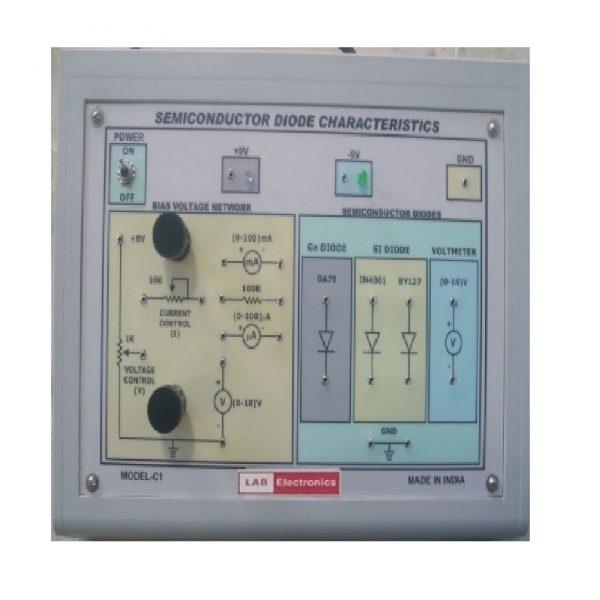

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
