Description
FEATURES OF THE TRAINER:
Housing It is mounted in an elegant cabinet for better viewing and portability
Dimension 27cm x 17cm x 10cm.
Weight 500 gm
-12.22%

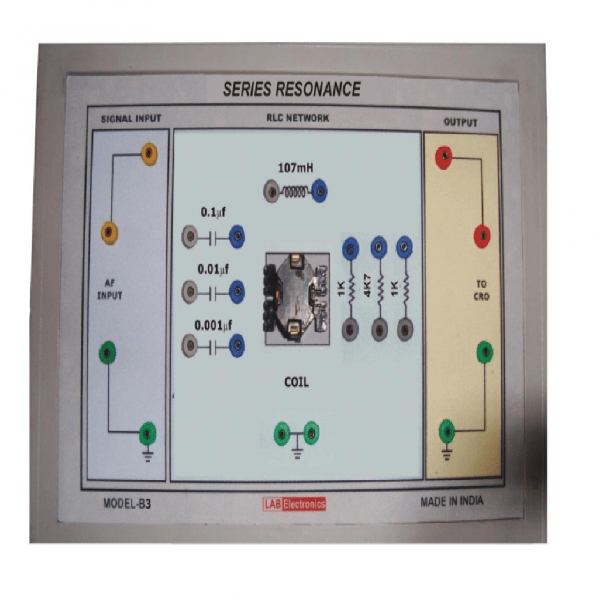

B3 SERIES RESONANCE
Category Special!
🚚 Delivery within 10 days
• To investigate the characteristics of the series resonant circuit.
• To verify that, at resonance, the current is maximum and is determined by the resistance in the circuit.
• To demonstrate that the voltage across the LC combination is minimum.
• To prove that the individual voltage across L or C can be higher than the applied voltage.
• To investigate how changing the values of L,C and R affect the characteristics of the circuit.
• To demonstrate that maximum voltage always occurs across L or C at resonance.
• To demonstrate that when R is increased, the amplitude of voltage across the capacitor is decreased.
• To demonstrate that the bandwidth increases by increasing resistance.
NO POWER SUPPLY IS REQUIRED since this trainer is constructed out of passive components.
