The purpose of this experiment is
• To demonstrate how an AC voltmeter is used to measure AC voltage.
• To demonstrate the relationship between AC voltage and frequency in a series resistive circuit
• To demonstrate the characteristics of a series R-C network.
• To learn AC circuit measurements and calculations.
• To show the effect of capacitors, in series and parallel.
• To investigate the properties of a capacitance voltage divider.
• To show how to draw an impedance vector diagram for R-C experimental circuit.
• To verify the operation and characteristics of low and high-pass R-C filters.
• To demonstrate the characteristics of inductance.

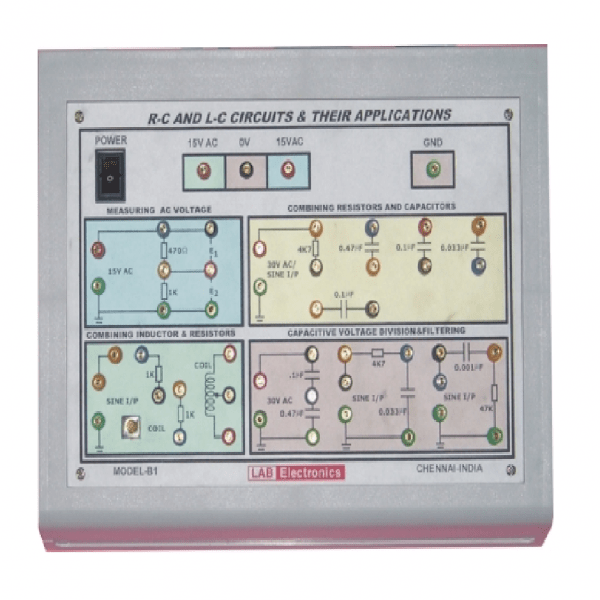

FEATURES OF THE TRAINER:
Built in
regulated power supply (15-0-15)VAC
Input Supply 230 VAC/50Hz mains operated
Housing It is mounted in an elegant cabinet for better viewing and portability
Dimension 27cm x 17cm x 10cm.
Weight 500gm
