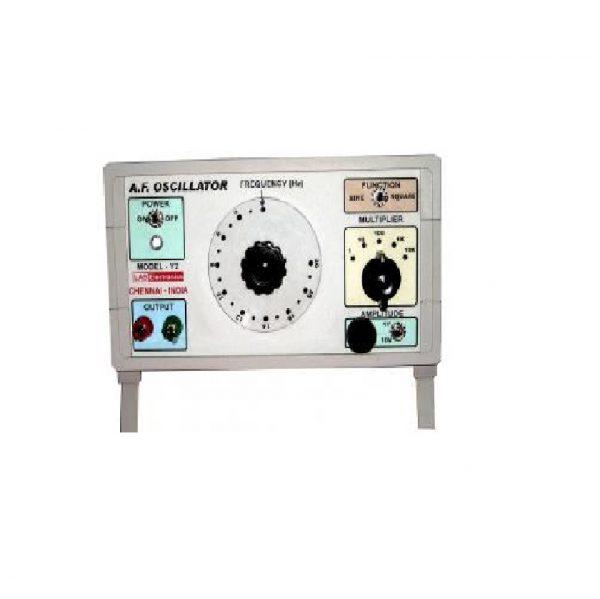

AUDIO FREQUENCY OSCILLATOR

Features

This instrument uses the latest technology available to generate SINE AND SQUARE waveforms over a frequency range from 2 Hz to 200 KHz in five-decade ranges. The amplitude of the waveform can be varied from 2 mV to 1 V peak to peak in one range and 20 mV to 10 V peak to peak in another range. The instrument is housed in an elegant cabinet.

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

FRONT PANEL CONTROLS:
The following description is intended to familiarize you with the front panel controls of the Sine/Square Wave Generator. The front panel has the following controls:
• Power on-off switch.
• Power on / off indicator lamp.
• Sine / Square Wave generator output terminals.
• 2-position function selector switch.
• 5-position frequency multiplier switch.
• Calibrated frequency dial potentiometer
• 2-position 1V / 10V peak-to-peak amplitude selector switch
• Output amplitude potentiometer
