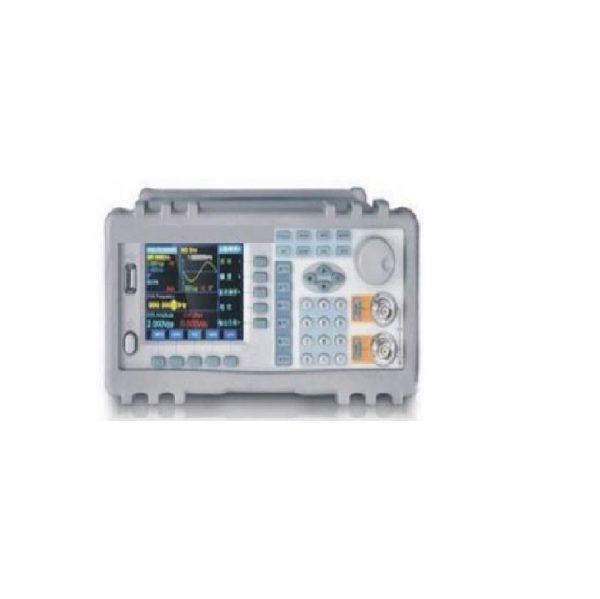

ARBITRARY WAVE FORM GENERATOR

WAVEFORM:
• Waveform type 32 kinds, such as Sine, Square, Triangle, Pulse etc
• Waveform length-1024 points
• Sample rate-100 MSa/s
• Vertical resolution-8 bits
• Harmonic rejection (sine)-40dBc (< 1MHz), ≥ 35dBc (1MHz~20MHz)
• Total distortion(sine)-≤1% (20Hz ~ 200kHz)
• Rise/fall time of square-≤ 35ns

• Overshoot-≤ 10%
• Square duty cycle 1% ~ 99%

FREQUENCY:
• Frequency range-20mHz ~ max. frequency(sine),20mHz ~1MHz(other waveforms)
• Frequency Resolution-20mHz
• Frequency Accuracy-±(50ppm+ 20mHz)
AMPLITUDE:
• Amplitude range-2mVpp ~ 20Vpp 20mHz~10MHz (high impedance)
• Amplitude Resolution-20mVpp (amplitude>about 2 Vpp),
• Amplitude Flatness-±5% (<10MHz), ±10% (>10MHz)
• Amplitude Accuracy-± (1%+2mVrms)( high impedance,1kHz,sine)
• Output impedance-50 Ω
SWEEP:
• Sweep rate-10ms~60s/step
• Sweep mode-Up, Down, Up-Down, Single
FM :
• FM depth-0% ~ 20% SHIFT KEYING
• PSK Hop Phase-0 ~ 360°, Max. resolution: 1°
• FSK,ASK free to set the carrier and hop frequency
• Alternate rate-10ms ~ 60s
BURST :
• Burst count-1~65000 cycles
• Burst mode- internal, external, single
• TTL Waveform rise/fall time- ≤ 20ns (square)
• Amplitude TTL,CMOS compatible, low level <0.3V,high level >4V GENERAL CHARACTERISTICS
• Frequency-20mHz ~ 1MHz
Power Supply :
• AC220V (1±10%)
• Dimensions – 415mm x 295mm x 195mm
• Weight-3.5kg
• Frequency- 50Hz (1±5%)

• Overshoot-≤ 10%
• Square duty cycle 1% ~ 99%



Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

FEATURES:
• Direct Digital Synthesis(DDS) technology, 2 independent output channels
• 3.5-inch TFT LCD display
• High Frequency Resolution: full-range resolution is 20 MHz
• Store 40 sets of the user parameters and recall
• 32 kinds of standard or build-in fixed waveforms
• Minimum stable output waveform: 1mV(50Ω)
• Multiple modulation functions: FM, FSK, ASK, PSK
• Frequency sweep, amplitude sweep and burst functions
• Count the frequency, period, amplitude RMS value or peak-to-peak value
• Over-voltage, over-current, output short-circuit and reverse voltage protections
• High reliability: use VLSI components and surface mount technology
• Power Amplifier: optional part, maximum output power up to 7W
• Optional configurations: RS232 interface, Frequency Counter, Power Amplifier SPECIFICATIONSOutput A Characteristics
