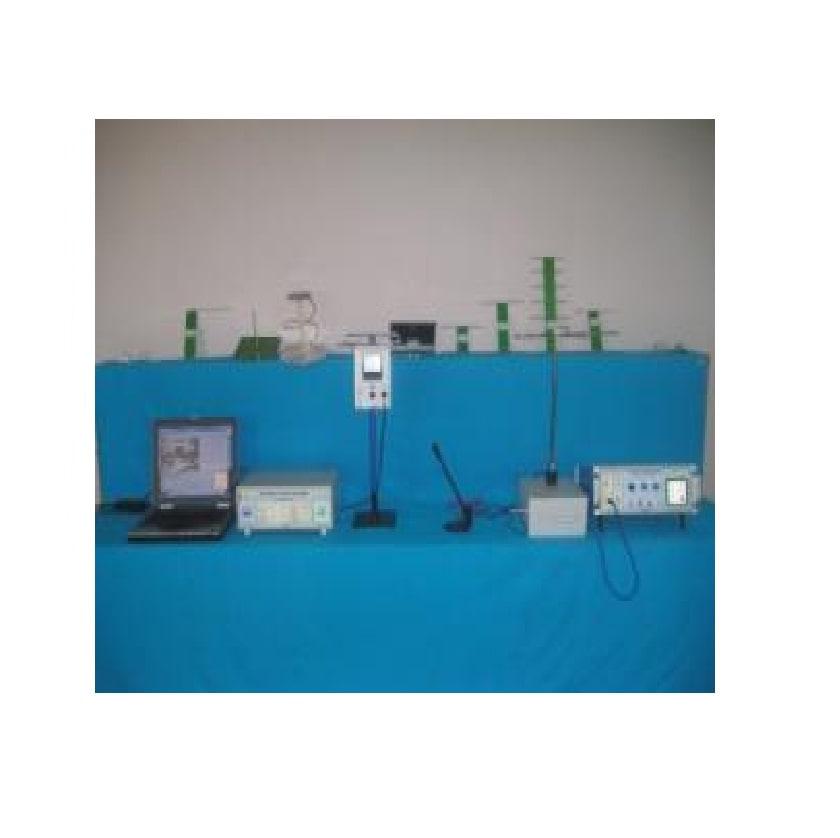

SOURCE:
RF Signal Generator
700MHz Range.
Power requirement
240V ac 50Hz.
Frequency range
700 MHz.
Output power
max 20 dBm.
Local oscillator
PLL frequency Synthesized.
AGC Dynamic range
40 dB.
Impedance
50 ohms.
IF
21.7 Mhz.
RF connection system
SMA and BNC connector.
IF
21.7 Mhz.
RF connection system
SMA and BNC connector.
Isotropic Radiator
2Nos
Field strength Meter.
1 No.
LIST OF EXPERIMENTS:
• EXPERIMENT – 1 General study of transmitting and receiving of s signals through antennas
• EXPERIMENT – 2 Study of hertz antenna
• EXPERIMENT – 3 Study of simple dipole l/2 antenna
• EXPERIMENT – 4 Study of zeepline antenna
• EXPERIMENT – 5 Study of simple dipole l/4 antennas
• EXPERIMENT – 6 Study of folded dipole antenna
• EXPERIMENT – 7 Study of phase array l/4 antenna
• EXPERIMENT – 8 Study of combined collinear antenna fullwave
• EXPERIMENT – 9 Study of phase array – l/2 antenna
• EXPERIMENT – 10 Study of yagi with folded dipole ( 3 elements)
• EXPERIMENT – 11 Study of yagi simple dipole (5 elements)
• EXPERIMENT – 12 Study of yagi with folded dipole ( 5 elements)
• EXPERIMENT – 13 Study of simple dipole ( 7 elements)
• EXPERIMENT – 14 Study of log periodic antenna
• EXPERIMENT – 15 Study of loop antenna
• EXPERIMENT – 16 Study of helical antenna
• EXPERIMENT – 17 Study of rhombus antenna
• EXPERIMENT – 18 Study of groundplane antenna
• EXPERIMENT – 18 Study of parabolic antenna
• EXPERIMENT – 20 Study of slot antenna

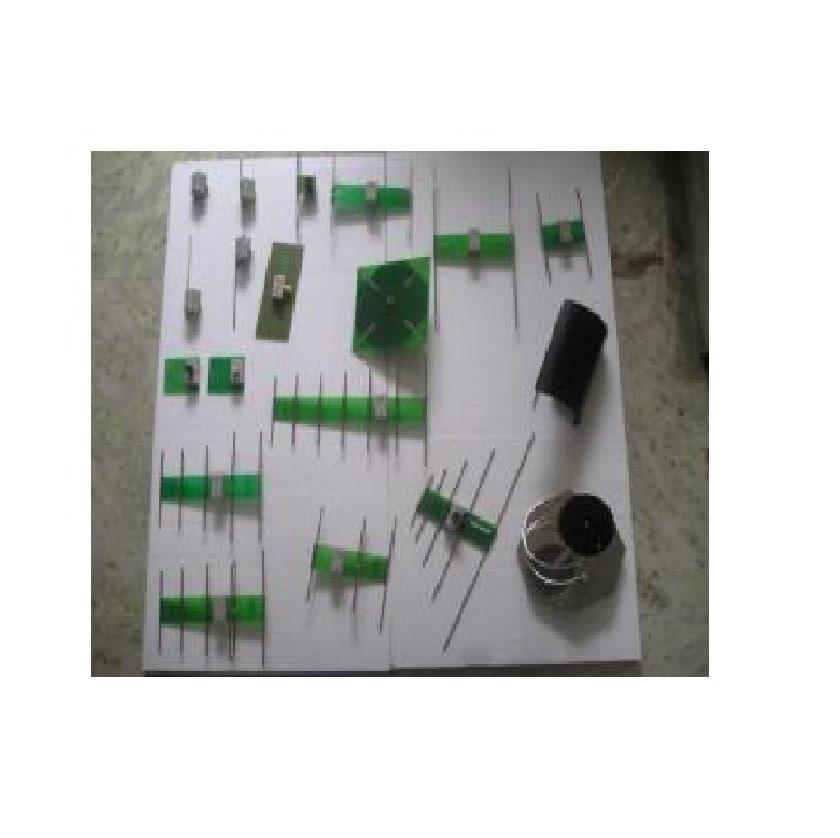

TYPES OF ANTENNAS: (EACH 1-NO)
• Dipole Antenna
• Folded Dipole Antenna
• Yagi Antenna : Element -Folded Dipole Radiator.
• Yagi Antenna : 5 Element -Folded Dipole Radiator.
• Yagi Antenna : 5 Element -Simple Dipole.
• Yagi Antenna : 3Element -Simple Dipole.
• Yagi Antenna : 7 Element.
• Ground Plane Antenna
• Hertz Antenna
• Zeep line Antenna
• Slot antenna.
• Loop Antenna.
• Rhombus Antenna.
• Phase array l/4.
• Phase array l/2.
• Log Periodic Antenna
• Helical Antenna
• Parabolic Antenna
• Combined Collinear Array.
CONTROLLER:
Control Method
AST software control.
Control Angle
360°, step : 1.8° / step
Calibration
auto
Motor rotation
Clockwise and anticlockwise in steps
SOFTWARE FEATURES:
o Supports 19 antennas
o Antenna Rotation control through Software.
o Auto Plotting of Radiation Pattern.
o Zoom-In and Zoom-Out.
o Radiation Pattern in Print Ready format .
o Theoretical Polar Plot is available.
o dBTable(Decibel) with Observed Values.
o Data logging in table format (Angle Vs Gain).
o Graphical User Interface.
SYSTEM REQUIREMENTS:
• Windows 98, 2000,XP,Windows 7
• 256 MB RAM is recommended.
DIMENSION: 600 X 500 X 300mm
ACCESSORIES:
• Stand
• RF Coaxial Cable
• Patch cord
• Carrying case
• Interface cables
• Software CD
• User Manual
• Cables.
