8251 USART 8251 COMPONENT
Category Special!
🚚 Delivery within 14 days

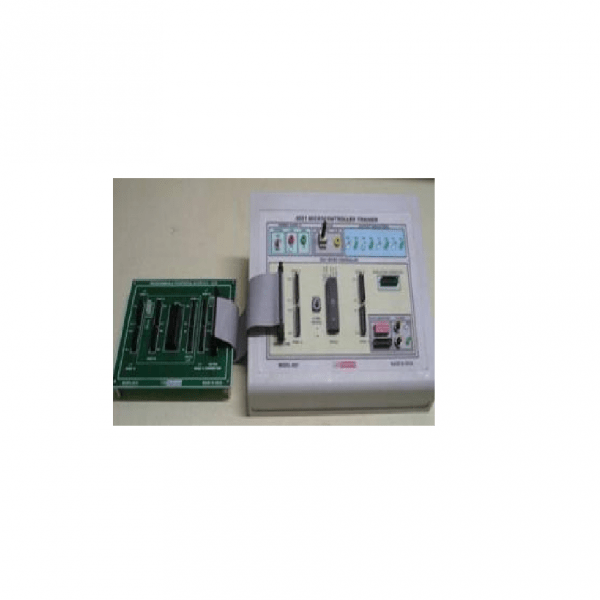

To understand the architecture, programming concepts and the interfacing techniques of the Programmable Communication Interface (8251-UART) by interfacing it with 89C51 microcontroller. The 8251 is a USART (Universal Synchronous Asynchronous Receiver Transmitter) for serial data communication. As a peripheral device of a microcomputer system, the 8251 receives parallel data from the CPU and transmits serial data after conversion. This device also receives serial data from the outside and transmits parallel data to the CPU after conversion.
Description
Features of the Trainer :
Power supply : Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
Housing : It is mounted in an elegant ABS Plastic cabinet for better viewing and portability.
Dimension : 29cm x 20cm x 11cm
Weight : 1.5kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
Accessories:
Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.

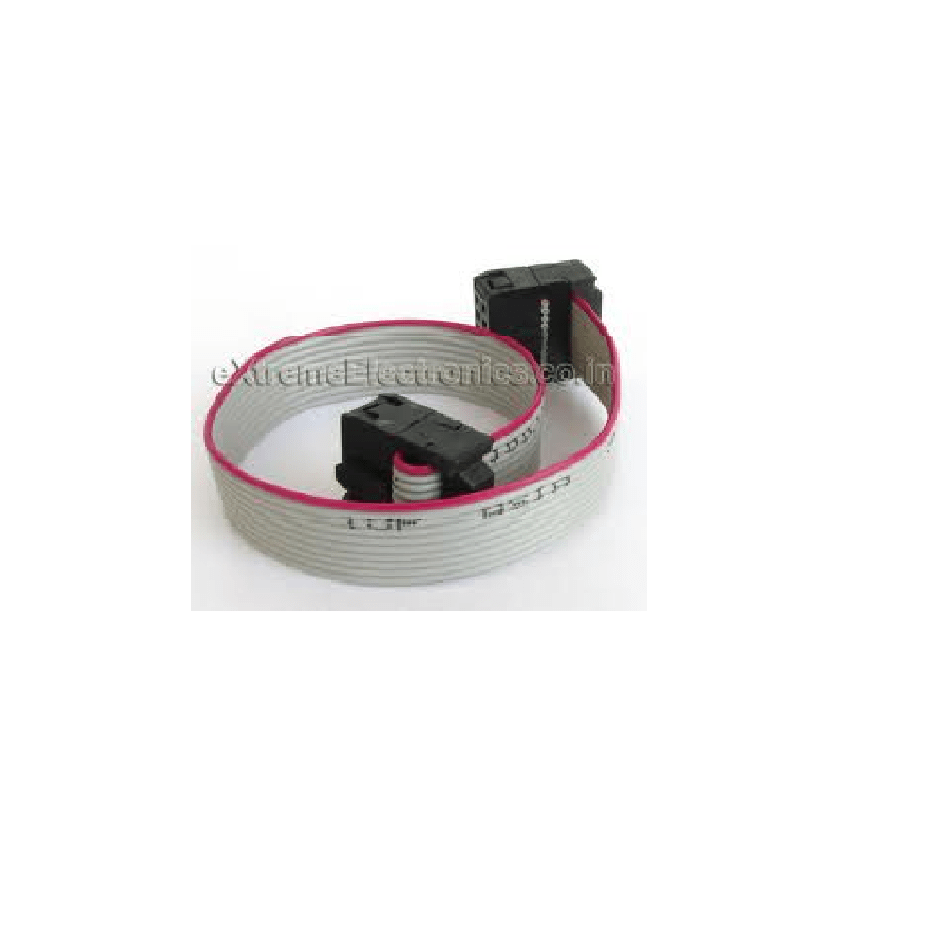

40-pin FRC

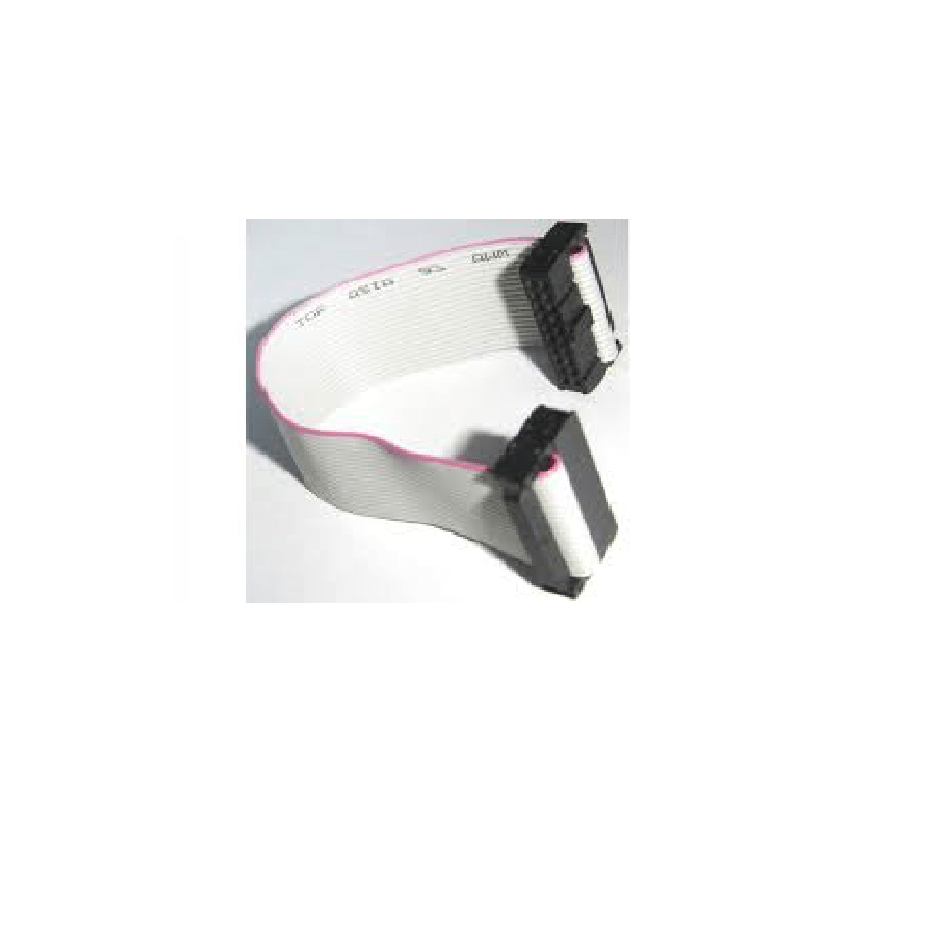

8-pin FRC
